If you ride around on a single speed bike or a BMX, then once every one to two years you need to replace the freewheel cog.
It became apparent that my freewheel needed replacing on my bike after I kept hearing a clonking sound, each time I’d be applying a lot of pressure to the pedals. This was particularly apparent, when pedalling uphill.
To complete this repair you’ll need a couple of tools:
- BMX Freewheel remover – one that will fit your freewheel cog. Note that as crazy as it sounds, some freewheel cogs are not designed to be removed. See destructive freewheel removal.
- Spanner – this will fit on to the freewheel remover. Ideally, don’t use an adjustable spanner as you are likely to slip and damage the tool and potentially your freewheel.
- Grease – use quality bike grease such as this one.
Buying a new freewheel
A cheap freewheel will cost you £20. A more expensive one will cost you around £40. However, the more expensive one is likely to last a couple of years or more. The cheaper one will probably last around 12 months, depending on usage.
Therefore, this is one of those scenarios where it’s worth spending money now, to save money in the long term.
At Lunar Cycles, my favourite local bike shop, we decided to order in a more expensive freewheel. They recommended the Halo Clickster. Besides being more durable, the Clickster also delivers a satisfying constant clicking sound when you are freewheeling.
Whichever model you order, make sure you count out the number of teeth that you need by comparing it to your existing single speed or BMX freewheel cog.
Step by step instructions

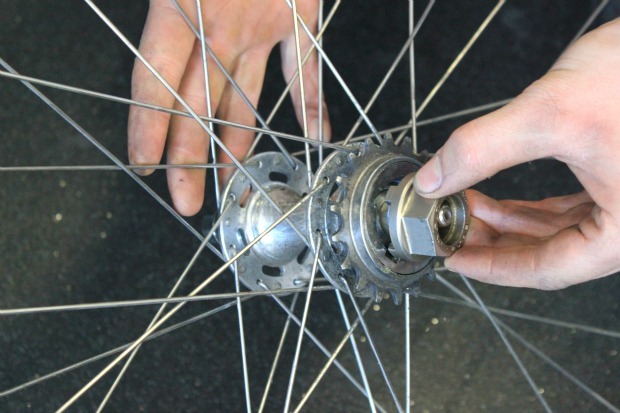

Step 1: With the wheel removed from the bike, fit the freewheel remover on to the cog, making sure you align the four notches.

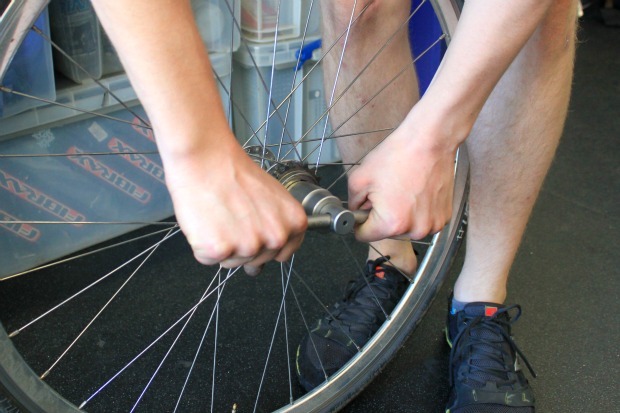

Step 2: Using a spanner (or wrench for our American counterparts) undo the freewheel counter clockwise.

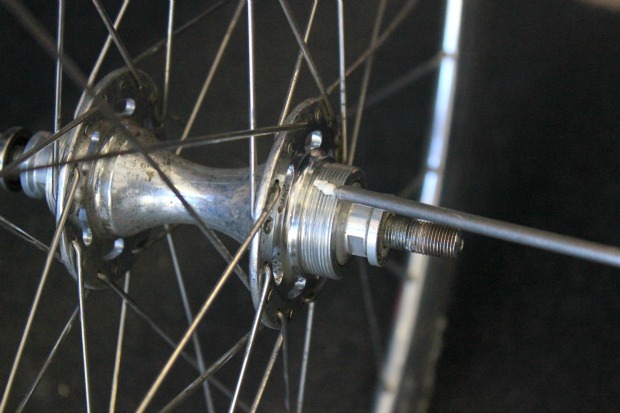

Step 3: With the freewheel removed, add plenty of quality grease and make sure you apply it evenly by using your hands to ensure all threads are fully greased.

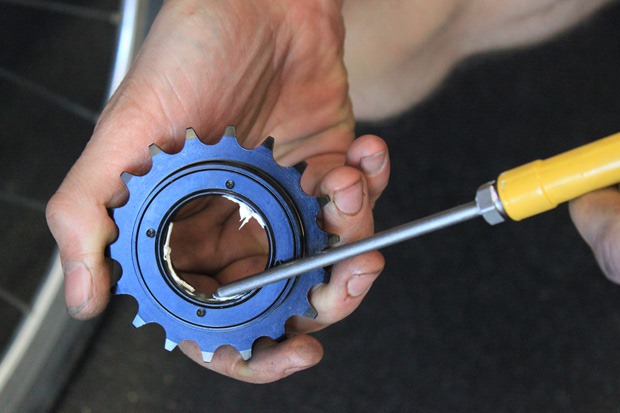

Step 4: Add grease to the threads of the freewheel cog and make sure you apply it evenly.

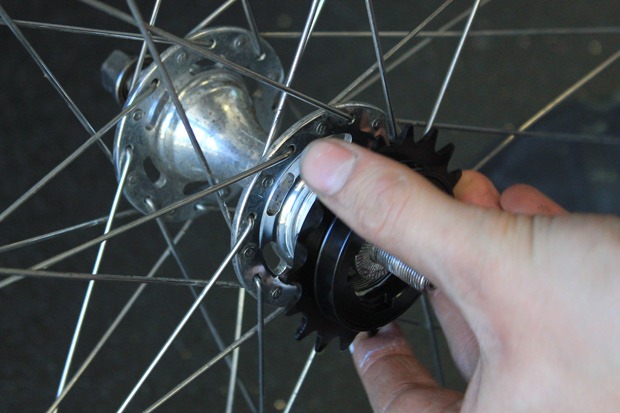

Step 5: Carefully fit the freewheel back on to the threads. Never use force when doing this. The freewheel should slide on easily, without resistance. If you need to use force, then you probably haven’t lined up the threads correctly. You should feel for a smooth movement as the freewheel fits in to position.

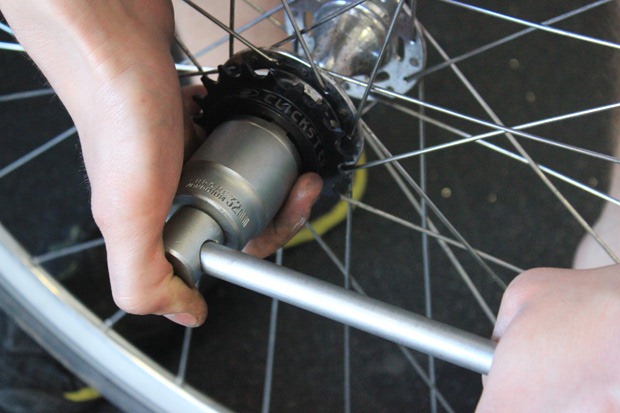

Step 6: Refit the freewheel remover in to position and use a spanner to tighten the freewheel in place. Note that you don’t need to use excessive amounts of force at this stage as the freewheel will tighten as you pedal.

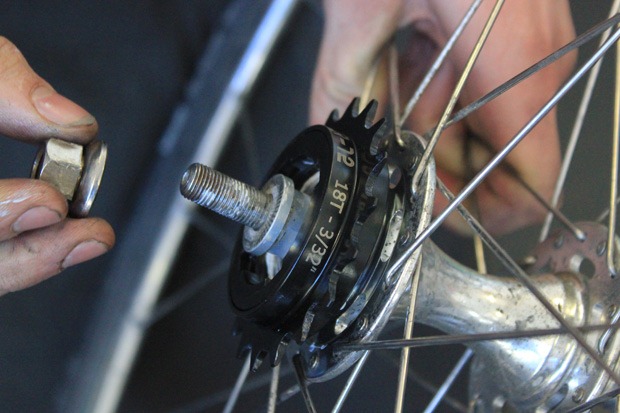

Step 7: With the threads slightly greased, refit the nuts and replace the wheel back on to the bike.
Thank you kindly to Lunar Cycles for allowing me to observe and picture this repair. We will be adding it to the next update of Bike Doctor.
Great little write up, though I would REALLY recommend removing the freewheel periodically, cleaning & re-greasing to prevent the darned thing seizing ’cause once seized, even with the correct removal tool they can be a real bugger to remove!
To remove one recently that REALLY had seized on my Kona Paddy Wagon I had to resort to a “destructive” method even though it was a supposedly removable type – thankfully it was a cheap one that was starting to get very noisy and worn…..it was still a real pain to remove!!
As to the grease on the threads, I do swear by Copper Slip or similar copper based anti seize compound greases, though any grease is better than no grease.
Putting the removal tool into a vice, rather than using a spanner, makes for a more stable situation. The wheel rim gives a good leverage – especially in the case of the ‘seized’ thread.
To make sure the removal tool doesn’t jump out of the dogs, fit a washer and nut to the whel spindle – but remember to loosen the nut as the freewheel is loosened.
I agree the use of Copper Slip. A tin will probably last you a lifetime!
Removal of freewheels without tool fittings (“Destructive Removal”). Often found on childrens bikes.
Freewheels that haven’t had a large body jumping on (eg. 12 stone rider) tham can usuall be removed fairly easily with just a hammer & punch. You have to take them apart. BUT you can then clean, grease & put them back together again.
THEY CAN BE REUSED !!
What do you make of the Halo Clickster? Is it annoyingly loud or just reassuringly so?
Annoyingly when you first switch to it but now I’ve grown to like the constant click.
White industries eno freewheel is what you want.
Sounds awesome, is totally user maintainable because of the sealed cartridge bearing.
Also outstanding pick-up.
Not cheap but worth every penny.
Removing a cheep freewheel that does not have keyways is possible without using the destructive method . Unior sells a tool called the Universal Freewheel Remover (1722/2bi) . It costs about £60.00 , the freewheel can be reused after removal .
Expensive! Ok if you change lots of free wheels.
For a one off, non-destructive method, use a hammer and punch.
Remove the cover plate using the punch ( or a pin spanner, if you have one), clockwise.
Lift off the freewheel, remembering to catch all the balls.
Remove the pawls & springs from the part still screwed to the bike.
Use the punch (and hammer) in the back of the pawl housing to remove the freewheel body; anti-clockwise.
—
This works fine on bikes that haven’t been stamped on by heavy feet – I’ve never had any problems – but the bigger (heavier) your feet, the bigger hammer you will need.
—
Clean, reassemble and reuse or set aside.
